Excellent Intel® HD Graphics performance - 3DMARK VANTAGE E8000+ marks!!
3DMARK VANTAGE E8000+ marks on H57/H55 system configuration
Intel Core i5 661, CPU@4.8GHz, GPU@ 900MHz, 4GB DDR3-1760(OC), Vista 32, 3DMARK VANTAGE.

* E8000+ marks in 3DMARK VANTAGE was achieved by overclocking.
* Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.

Intel® Core™ i7/ Core™ i5/ Core™ i3 LGA 1156 Processors

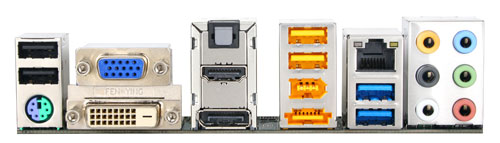

Supporting the latest Intel® Core™ i7, Core™ i5 and Core™ i3 processors featuring the first time ever integrated graphics on chip and LGA 1156 socket(Core™ i5 and Core™ i3 processors only), GIGABYTE H5x series motherboards set a new standard in multimedia platform for high definition contents playback. With the GPU integrated directly into the processor die, GIGABYTE H5x motherboards support 2 channel DDR3 memory, wide range of display interfaces that includes VGA, DVI, HDMI and DisplayPort (Depends on model). Additionally, the GIGABYTE H5x Series are optimized for greater graphics performance by enabling overclocking the GPU core frequency for a performance gain of up to 13%.
*Onboard motherboard display functionality requires a processor with Intel Graphics Technology.

USB 3.0 Support
The GIGABYTE USB3.0 series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

3x USB Power Boost
GIGABYTE USB3.0 series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

Ultra Durable 3


GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking... more

Benefits of 2 oz Copper PCB




• Cooler than traditional motherboards
• Enhanced durability
• Improved energy efficiency
• Greater margins for overclocking... more

Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.






			Smart QuickBoot No more waiting for PC Boot up				Smart DualBIOS Smart personal reminder
			Smart QuickBoost One-click Overclocking				Smart Recorder Your PC's Watch Dog
			Smart Recovery Reverse time for you				Smart TimeLock Time Controller for PC

XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.

Qualified for Windows® 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards... more

Dynamic Energy Saver™ 2
GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.

DDR3 2200+ Support
Supports the latest Intel processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE.
* Please refer "Memory Support List" for memory support information

Display Port Support
The GIGABYTE motherboards featuring the next generation graphics display interface DisplayPort that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors, enabling the fastest refresh rates and the greatest color depths.

HDMI-The Next Generation Multimedia Interface
HDMI is the latest High-Definition Multimedia Interface able to provide up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer.

DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.

Multi-display support with ATI CrossFireX

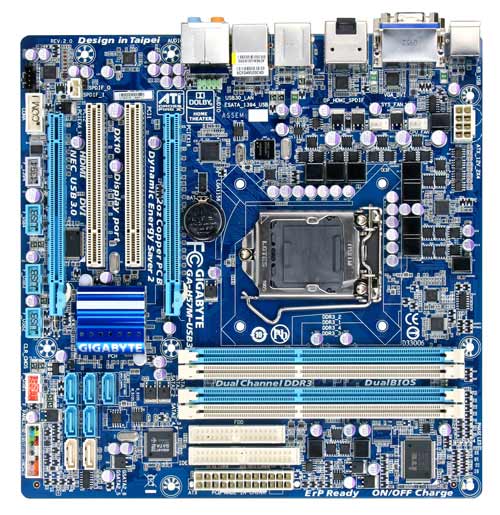

H57M-USB3 supporting ATI CrossFireX delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
(H57M-USB3 support software ATI CrossFireX only)

Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
• Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
• Designed to automatically deliver the best possible listening experience

Norton™ Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.

EuP Lot 6 support
The EuP (as known as Energy Using Products Directive) is part of new European Union's environment regulations. EuP established is based on the concern of environmental issues regards electronic devices been gained popularity and how to improve energy efficiency for better and greener life. GIGABYTE presents standard motherboards to help you effectively improving system performance and saving more energy.
